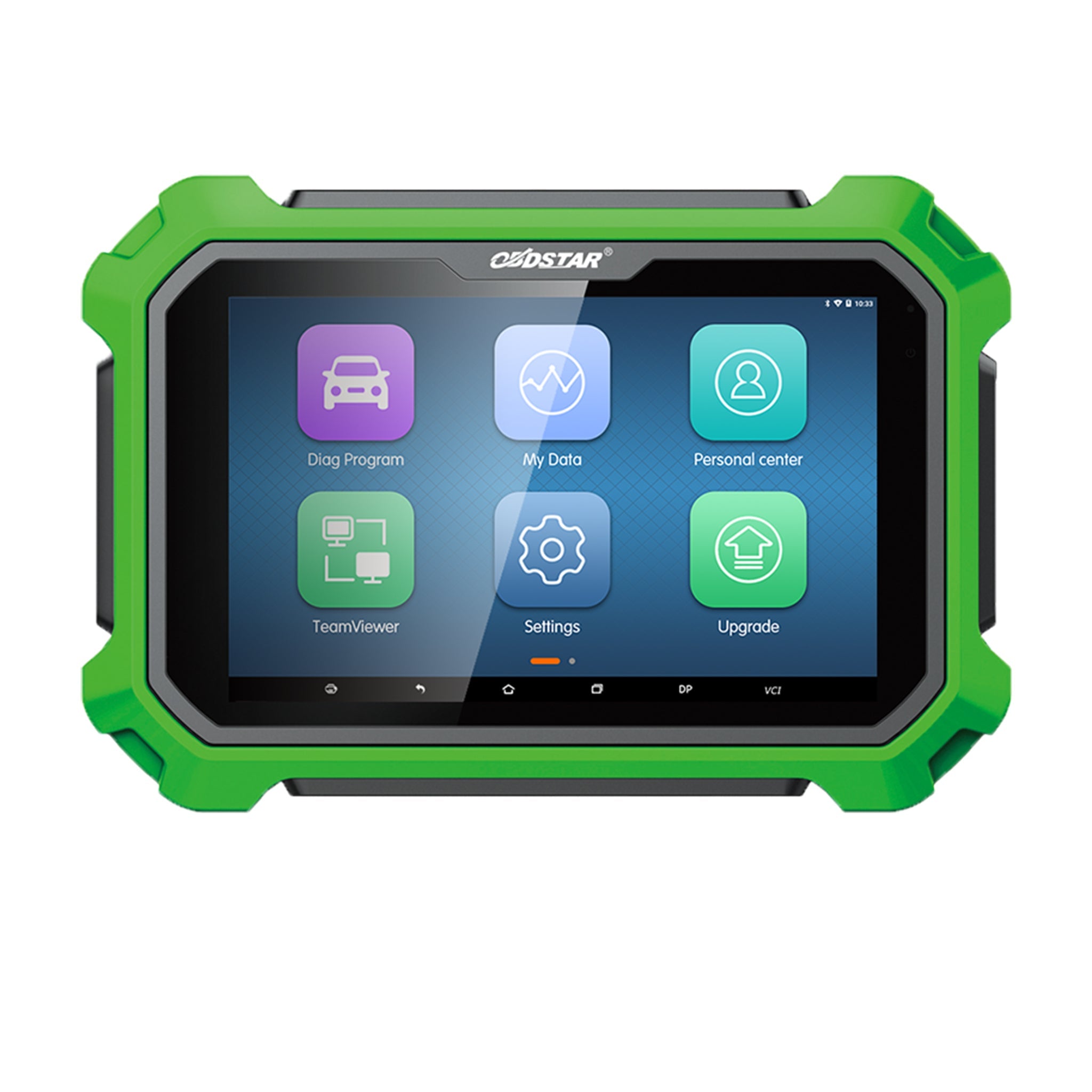

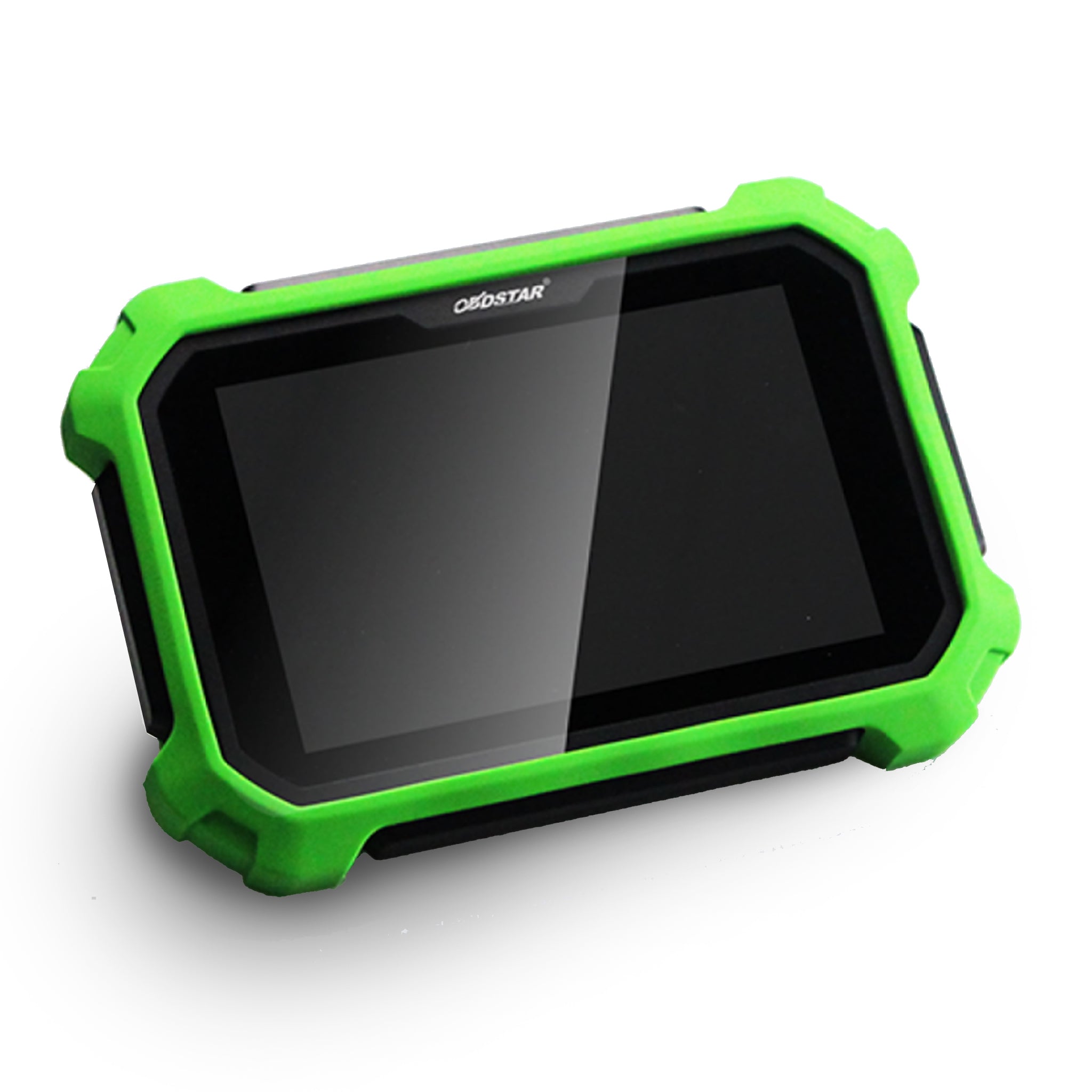

OBDSTAR KeyMaster DP Plus "A"

This is the "A" Package offering the basic KeyMaster set. For a more advanced bundle, please check out the "C" Package which offers more special features.

The KeyMaster DP Plus is an android based advanced multi-functional tool for troubleshooting a wide range of vehicles. Built upon previous iterations of OBDSTAR's advanced diagnosing technology, the KeyMaster DP Plus offers a variety of robust features with accurate results. By connecting to the vehicle’s diagnostic OBD port and working with a range of intelligent mobile devices, this tool provides comprehensive diagnostics across an extensive range of vehicle models and systems. Leveraging mobile internet connectivity, it also offers integrated features such as a Maintenance Database, remote assistance, and One-Key Upgrade, significantly enhancing its functionality and user experience.

KeyMaster DP Plus Features:

• All-encompassing diagnostics of most vehicles covering Asian, European and North American models which you can access directly on the device.
• IMMO EEPROM key programming and cluster calibration.
• IMMO induction coil to detect the key induction coil failure of the vehicle.
• ECU cloning/duplication/programming.
• Helpful on screen functions include ECU wiring diagrams and car list information.

• Special function programming: ABS, EPB, DPF, TPMS, TPS, gear learning, battery matching, remote manual setting, throttle matching and many more.
• OBDII Diagnosis functions such as: Oil service reset, Airbag reset, Electronic Parking Brake release, Steering angle reset, Battery Matching, and more
• P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter

• C001/C002 circuit boards to read and write chip data with welding
• Simulates CAN communication for secondary power activation.

• Upgrade and updated vehicle coverage announcements.
• Can simulation Toyota/Lexus keys with the use of the OBDSTAR 5-in-1 Toyota Key Simulator

Advanced Function examples:

• Supports Mazda CX30 2020+, Mazda 3 2020+ key programming (supports AKL and free pin code)
• Supports Jeep Compass 2021+ proximity, all part numbers, read pin code
• Supports GMC pin code reading on GM vehicles
• Supports Ford 2015+ key programming functions
• Supports Hyundai/Kia add 47/8A/46 smart key pin code reading


OBDSTAR Key Master DP Plus Technical Specs:

• Operation system: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
• Battery: 3700mA, rechargeable polymer lithium battery
• Extension memory card: 32G Micro SD (TF) card supported
• Memory capacity: 1GB
• Storage capacity: 32GB
• LCD: 8.0 inch Capacitive touch screen
• LCD resolution: 1280x800

• Camera: 5 mega rear view camera
• Wi-Fi: Supported (5G connection needed)

• Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
• Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
• Weight: about 1.0 Kg / 2.2 lbs
• Dimension: 254mm× 174mm × 35mm / 10.00 in × 6.85 in × 1.38 in
• Back bracket for propping/standing on surfaces



OBDSTAR KeyMaster DP Plus "A" Package Contents:

• OBDSTAR Key Master DP Plus Main Unit
• Main test cable
• RT100 Remote tester
• P001 Programmer
• C001 Circuit Board
• C002 Circuit Board
• W001 Cable
• W002 Cable
• W003 Cable
• IMMO Induction Coil

• KIA-20 Adapter
• Honda-3 Adapter
• Hyundai-10 Adapter
• OBDII-16 Adapter

• DC Power Adapter (Output DC 12V/2A)
• Certificate

• Quick start guide
• 2 year subscription of free software updates

OBDSTAR KeyMaster DP Plus Manual V1.0
